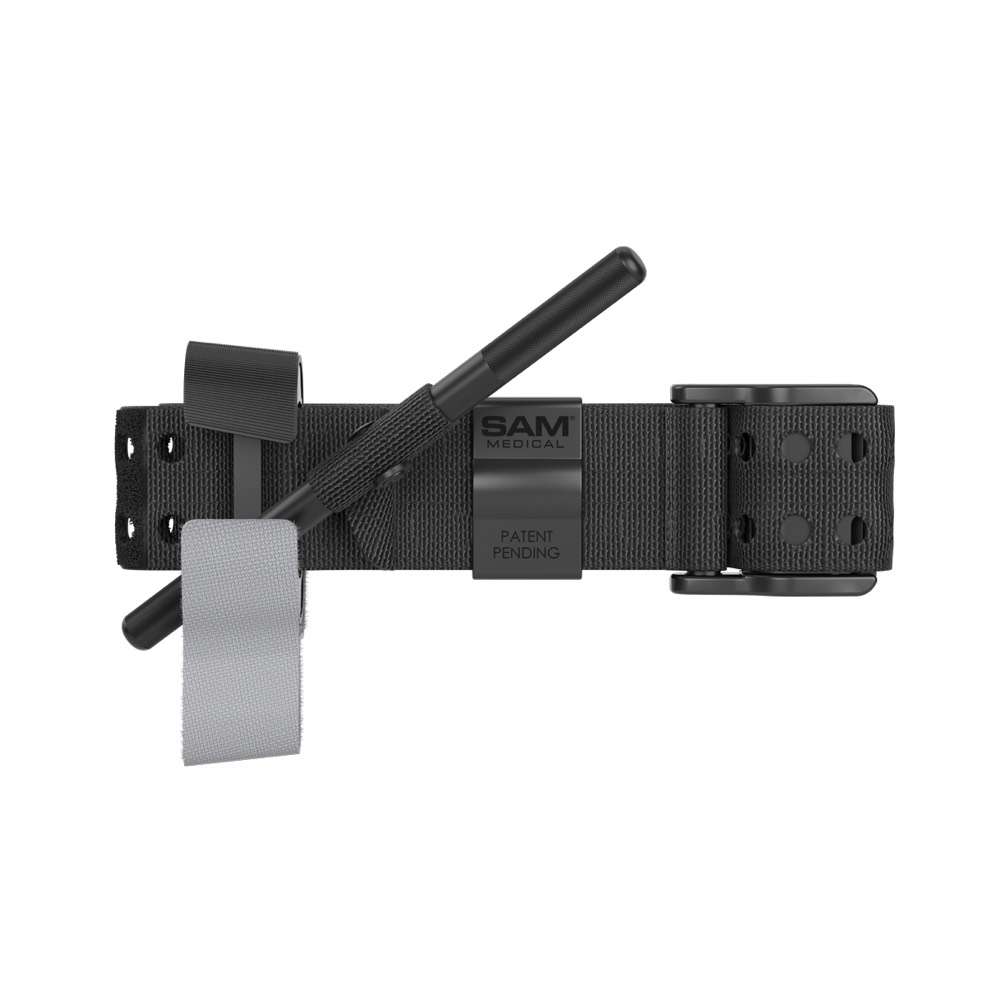

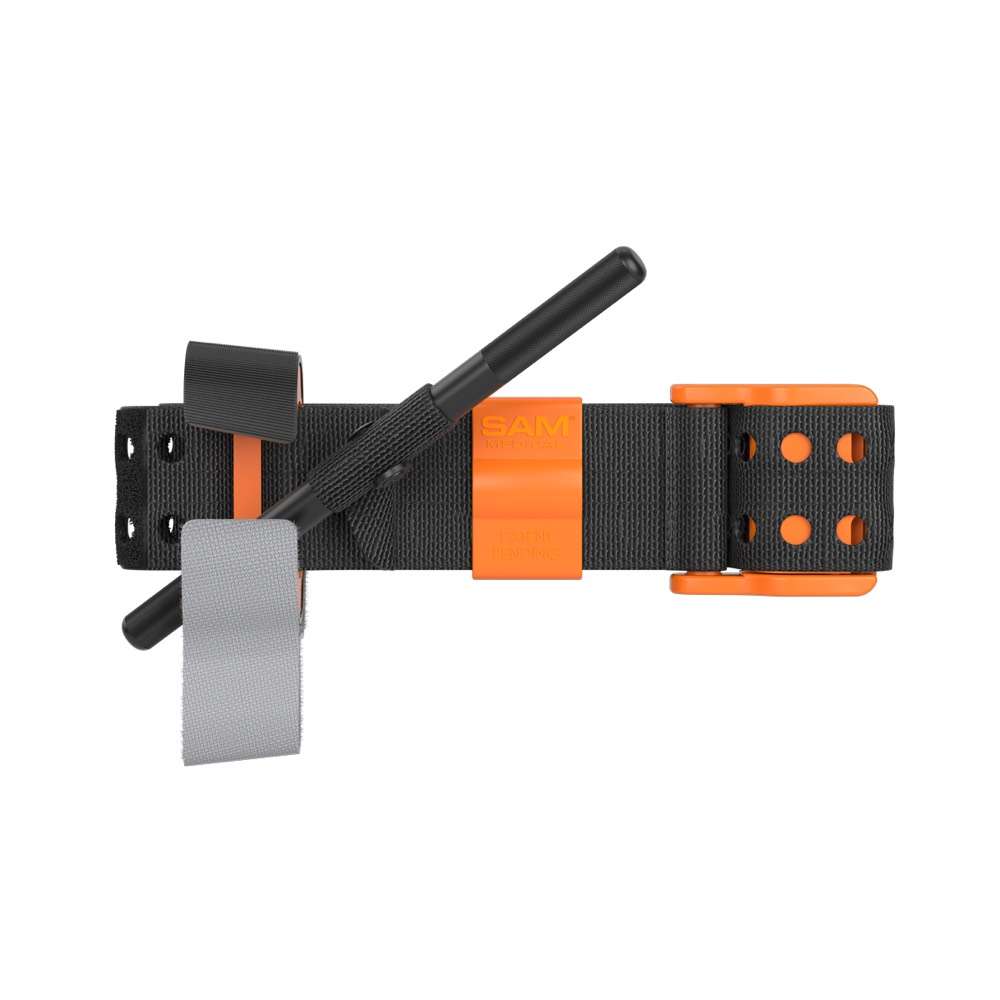

SAM XT Extremity Tourniquet

SAM XT Extremity Tourniquet is engineered for rapid application. SAM XT’s innovative design requires fewer windlass turns, and enables easier, faster training and intuitive use.

The TRUFORCE buckle technology auto-locks to eliminate nearly all tourniquet slack by incorporating innovative baseline force control, activating the locking prongs.

Furthermore, SAM XT features the metal windlass rod is machined from extruded bars of strong, lightweight 6061-T6 true billet aluminum for consistent reliability when compared to plastic composites.

FEATURES

Time Band: Weather-resistant hook and loop system functions when fully submerged, providing maximum security in the harshest weather. Outer material is optimized for night vision.

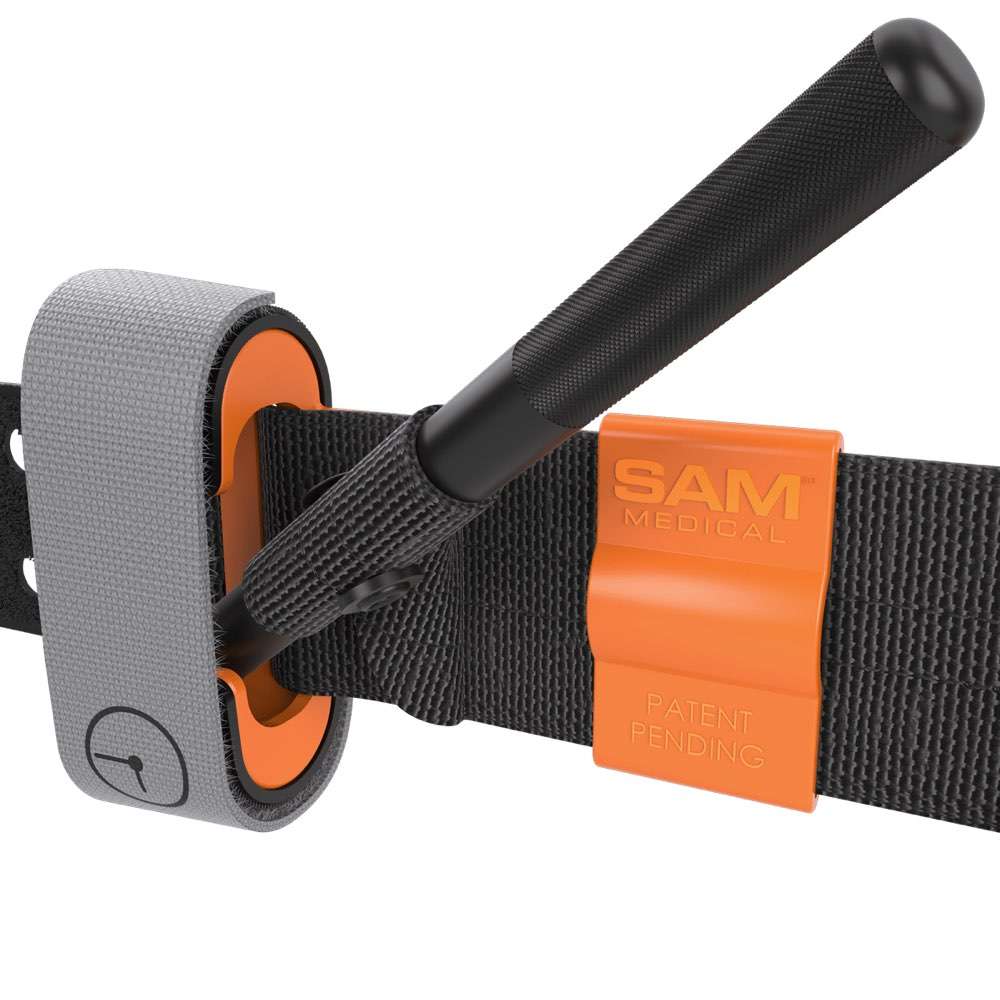

Windlass C-Hooks: Secures the Metal Windlass Rod using an intuitive angular design, making windlass locking easier and more efficient.
TRUFLEX™ Plate: Durable nylon construction distributes force as targeted pressure for maximum strength and flexibility, able to bend on smaller extremities without breaking.
TRUFORCE™ Buckle: Innovative auto-lock technology activates locking prongs, eliminating slack typically found in all other tourniquet applications.
Metal Windlass Rod: Machined from extruded bars of strong, lightweight 6061-T6 true billet aluminum for consistent reliability when compared to plastic composites.
Precision Strap: Velcro®-dependent tourniquets can fail when wet or dirty. The all-weather Precision Strap is made of single-layer nylon webbing. It features intervaled holes that lock with the TRUFORCE™ Buckle to create a consistent, efficient primary-security system. The secondary hook and loop system hook and loop system secures the remaining strap, adding stability and safety.
Precision Tab: Intuitive design allows for quicker, easier tourniquet application. Material is optimized for night vision.
Meets MIL-STD 810G for durability

SPECIFICATIONS

NSN: 6515-01-670-2240
Dimensions: 2.5”(L) x 1.5”(W) x 7.25”(H) / 6.3 x 3.8 x 18.4 cm
Weight: 3.8 oz / 108 g
Made in the U.S.A.
